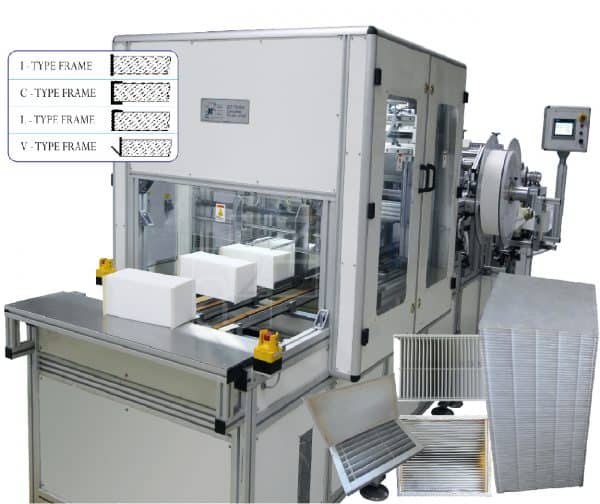

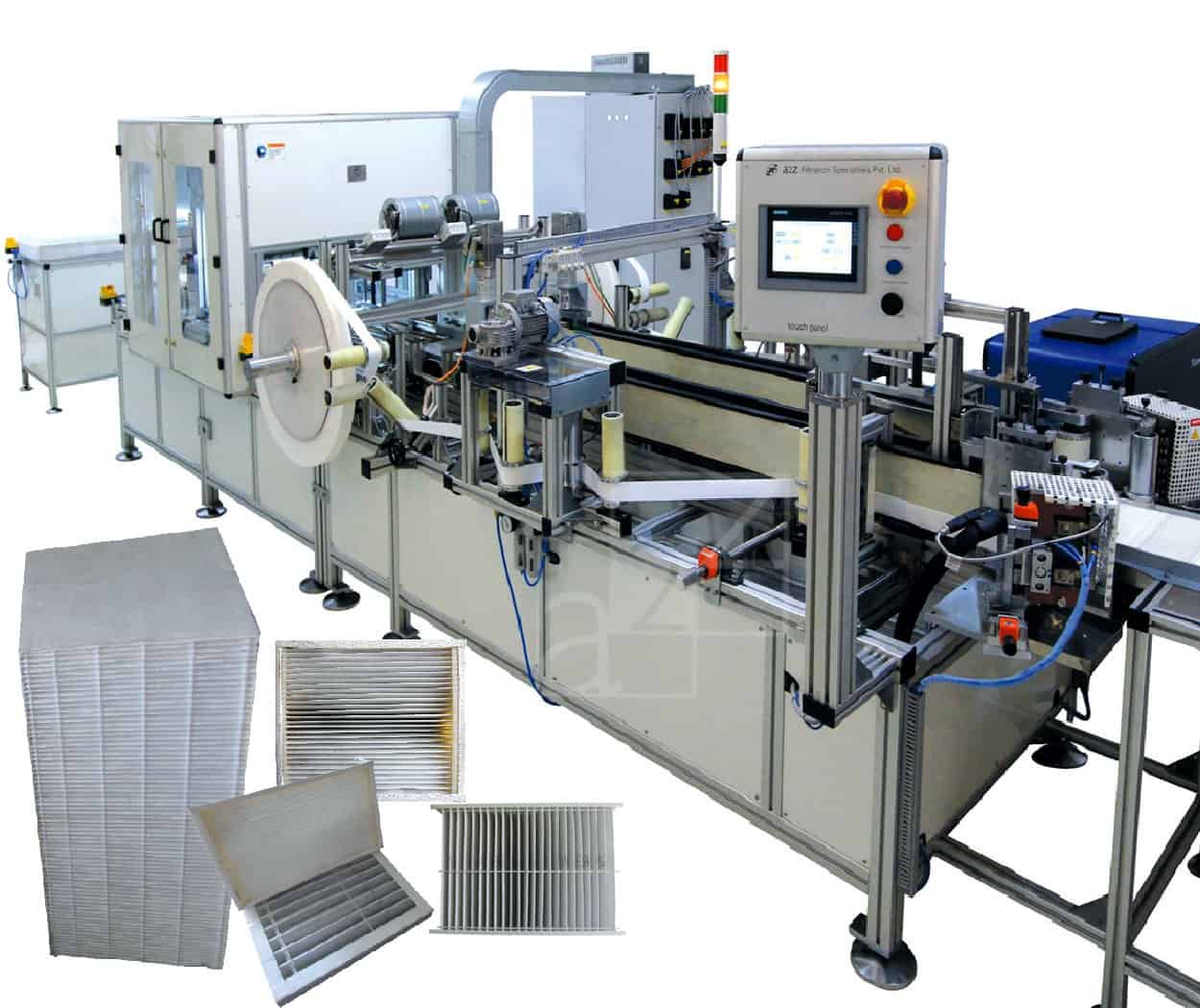

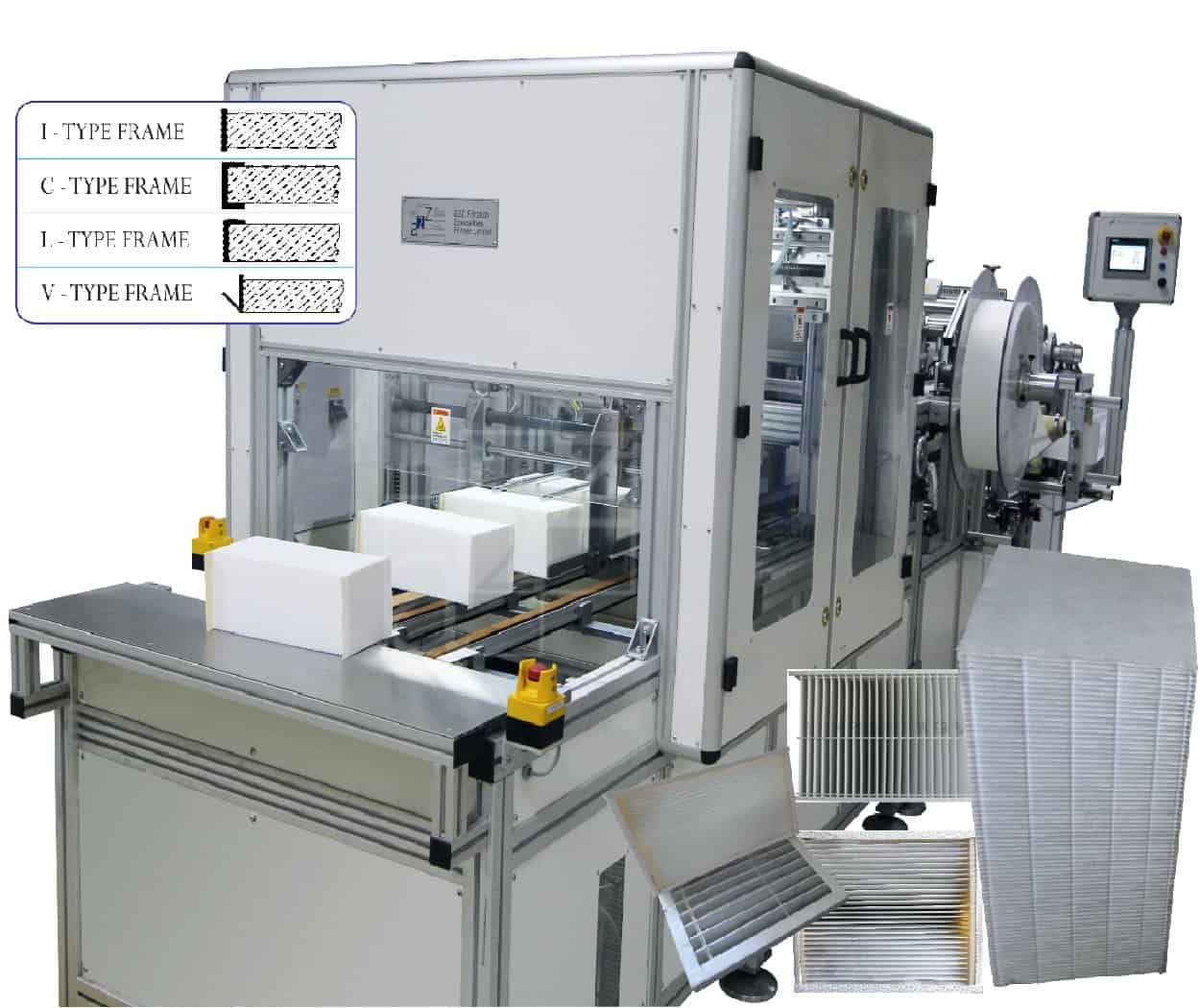

Intelligent Servo Filter Framing Line

Designed for online framing/banding of filter
Reduces manual operations
Range from 150mm (6”) to 700mm (28”) working width
Pleat depth range 25mm (1”) to 150mm (6”)
Automatic cutting with tolerances of + 0 pleat
Production rate up to 6-8 filters per minute
Suitable for various frame/band profile I, V, C, L
Inline conversion of frame/band roll material to required frame profile (I,V,C,L)
Possibility of framing/banding on 2 side and 4 side of filter
Wide range of side framing/banding material-Nonwoven, Spun Bonds, Laminated card boards
Allows quick changeover
This equipment is 7 axis servo driven system.
Suitable for different media like Synthetics, Glass fiber, Activated carbon, Laminates, etc.
Inline & offline pitching options available
